This guide covers AI Session Analyzer on HTTP Proxy resources, where each HTTP request is analyzed individually. For ad-hoc terminal sessions (Web App terminal & hoop exec CLI), see the AI Session Analyzer configuration guide. For the conceptual overview, see the AI Session Analyzer guide.

​
Prerequisites

​
Step 1: Enable the Feature Flag

Per-request analysis of HTTP Proxy traffic is gated behind a feature flag:
  1. Go to Organization > Settings > Experimental.
  2. Toggle experimental.http_session_analyzer to On.
The flag is per-org and defaults to off. Without it, AI Session Analyzer rules are ignored for HTTP Proxy resources — requests pass through unanalyzed.

​
Step 2: Configure the AI Provider

In the Web App, open the Discover section in the main sidebar and select AI Session Analyzer, then open the Configure tab.

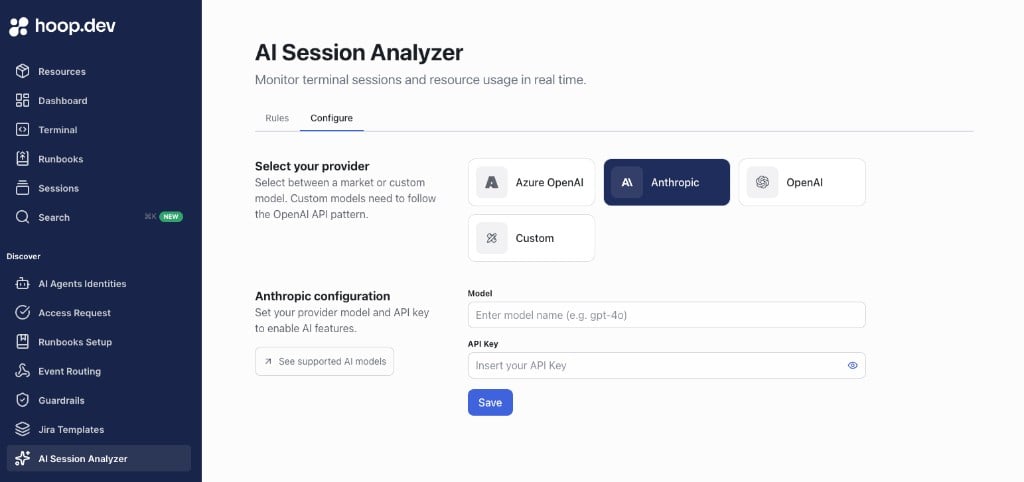

AI Session Analyzer Configure tab with provider selection
  1. Select one provider:
    • Azure OpenAI
    • OpenAI
    • Anthropic
    • Custom (OpenAI-compatible API)
  2. Enter the AI model
  3. Enter the API key
  4. Click Save
Required fields cannot be empty, and credentials are validated before save. On success, the UI shows: Configuration saved.

​
Step 3: Create the Rule

In AI Session Analyzer > Rules:

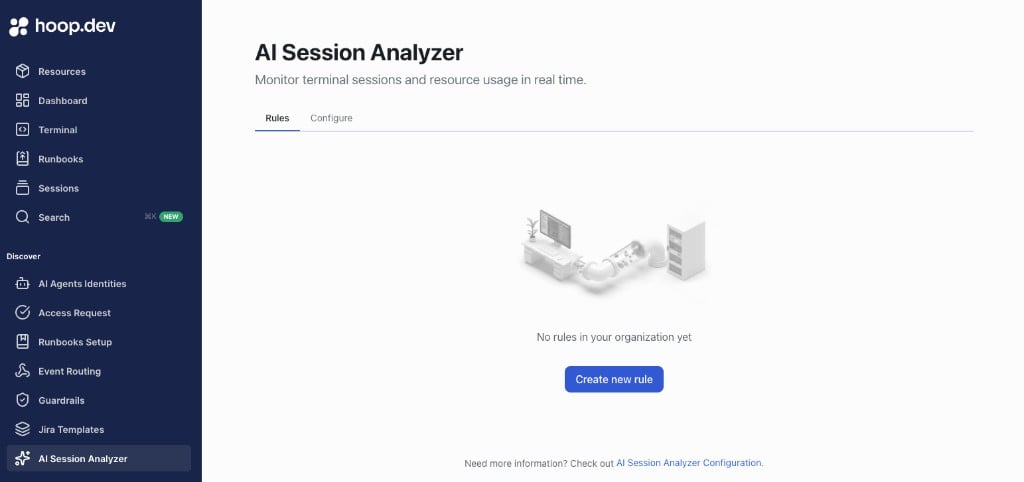

AI Session Analyzer Rules tab with the Create new rule button
  1. Click Create new rule
  2. Add a Name and optional Description
  3. In the rule scope, select your HTTP Proxy resource. A resource can belong to only one rule — saving fails if another rule already covers it.
  4. Select the action for each risk level (Low, Medium, High): allow execution or block execution
  5. Save the rule
Require access request does not block HTTP Proxy traffic. An HTTP request is synchronous and short-lived, while an access request approval is asynchronous — the proxy cannot hold a request open waiting for a human decision. On HTTP resources this action degrades to a warning: the verdict is recorded in the session, but the request is forwarded.To stop risky requests on an HTTP Proxy resource, use Block execution. To gate access behind approval, require it at connection time instead with Just-in-Time access — approval then happens when credentials are issued, not per request.

​
Step 4: Send Traffic Through the Proxy

Point your client at the HTTP Proxy resource and send requests. Each request (method, path, and body) is evaluated in real time using your configured provider and rule.

​
Step 5: Verify the Result

  • Allowed requests are forwarded to the upstream and the analyzer verdict appears in the session details.
  • Blocked requests receive an HTTP 403 Forbidden response with a JSON body describing the risk level, the triggered rule, and an explanation. The proxy session stays open — the block applies to that request only, and the next request is analyzed independently.
  • Requests matching a Require access request tier are forwarded with a warning verdict recorded in the session details.

​
How HTTP Analysis Differs from Terminal Sessions

​
Troubleshooting

​
Requests Are Not Being Analyzed

Check:
  1. experimental.http_session_analyzer is enabled for your org
  2. The AI provider is configured and saved in the Configure tab
  3. A rule exists and its scope includes the HTTP Proxy resource
  4. The resource type is HTTP Proxy — a TCP resource tunnels opaque bytes and cannot be analyzed

​
Risky Requests Pass with Only a Warning

The rule tier for that risk level is set to Require access request, which does not block on HTTP resources. Change the tier action to Block execution.

​
Save Is Blocked

Check:
  1. All required fields are filled
  2. The rule name is unique in your organization
  3. No other rule already includes the selected resource
