Hoop exposes an SSH server in the gateway that accepts certificate-based authentication, allowing users to access Hoop resources through the standard SSH protocol — no Hoop CLI required. This is ideal for administrators who want to integrate Hoop’s audit, guardrails, and data masking capabilities into existing bastion server workflows, or replace their bastion entirely with Hoop as a jump host.

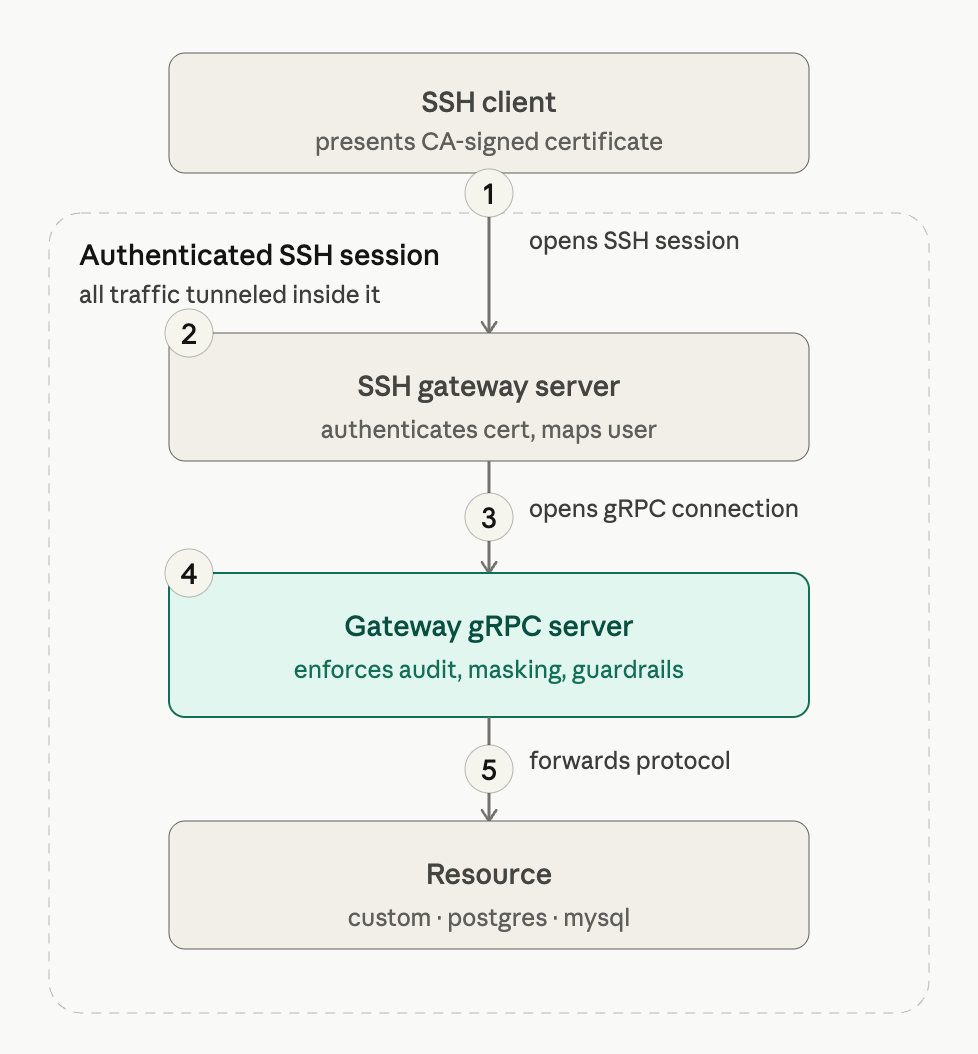

SSH Integration High-Level Diagram
1

SSH client presents a certificate

The user’s SSH client authenticates using a certificate signed by a trusted CA. No passwords or API tokens are needed — the certificate is the only credential.
2

SSH gateway server validates and maps the user

The Hoop SSH gateway verifies the certificate signature against the configured trusted CA. It then extracts the configured certificate attribute (principal or key_id) and maps it to a known Hoop user via the configured user attribute (user_id, subject, or email). The connection is rejected if no matching user is found or if the certificate is expired or unsigned.
3

Internal gRPC connection is opened

Once the user is authenticated, the SSH gateway opens an internal gRPC connection to the core Hoop gateway server, passing the resolved user identity and the requested resource role.
4

Policies are enforced and the protocol is forwarded

The gRPC server applies all configured policies for that resource role and user — session recording, data masking, guardrails, and access reviews — and simultaneously proxies the underlying protocol to the target resource. For custom resource roles this is a PTY or stdin stream; for postgres and mysql it is a raw TCP port-forward. From this point, the session is indistinguishable from a native Hoop session.

​
How It Works

The Hoop gateway exposes an SSH server that validates incoming connections via SSH certificate extensions. Access is granted or denied based on the following extensions present in the certificate:
ExtensionDescription
permit-ptyAllows the client to allocate a pseudo-TTY for interactive sessions
permit-port-forwardingAllows the client to perform port-forwarding
Hoop uses the standard SSH protocol as a secure authenticated transport layer and forwards the underlying protocols internally over gRPC.

​
Certificate Attributes

The certificate is validated against Hoop user attributes to identify the connecting user. Configure which certificate field maps to which Hoop user attribute: Certificate attribute (source):
AttributeDescription
principalThe certificate’s principal list is used to look up a known Hoop user
key_idThe certificate’s key ID is used to look up a known Hoop user
Hoop user attribute (target):
AttributeDescription
user_idMatch the certificate attribute value against the user’s internal ID
subjectMatch the certificate attribute value against the user’s subject
emailMatch the certificate attribute value against the user’s email

​
Configuration

Use the hoop admin sshserver apply command to configure the SSH server on your gateway. At minimum you need to provide the trusted CA public key, a listen address, and the attribute mapping between the certificate and a Hoop user.
The SSH server restarts automatically after each apply to pick up the new configuration. Existing connections will be dropped briefly during the restart.
Single CA:
hoop admin sshserver apply \
  --trusted-ca "$(cat ./certs/ca.pub)" \
  --listen-address 0.0.0.0:12222 \
  --user-attr user_id \
  --cert-attr principal
Multiple CAs — pass --trusted-ca once per CA to trust certificates from more than one authority:
hoop admin sshserver apply \
  --trusted-ca "$(cat ./certs/ca.pub)" \
  --trusted-ca "$(cat ./certs/ca2.pub)" \
  --listen-address 0.0.0.0:12222 \
  --user-attr user_id \
  --cert-attr principal
Distinct attribute mapping — use key_id from the certificate and match it against the user’s subject:
hoop admin sshserver apply \
  --trusted-ca "$(cat ./certs/ca.pub)" \
  --listen-address 0.0.0.0:12222 \
  --user-attr subject \
  --cert-attr key_id
FlagDescription
--trusted-caPublic key of a trusted CA. Repeat the flag to add multiple CAs.
--listen-addressAddress and port the SSH server will bind to (e.g. 0.0.0.0:12222)
--user-attrHoop user attribute to match against (user_id, subject, or email)
--cert-attrCertificate attribute to extract for user lookup (principal or key_id)

​
Generating Certificates

The examples below use ssh-keygen to operate a self-managed CA — suitable for testing and small deployments. For production environments, use a dedicated PKI solution such as HashiCorp Vault SSH Secrets Engine, Smallstep, or AWS Private CA to handle certificate issuance, renewal, and revocation at scale.
Create the CA keypair Generate a CA keypair that will be used to sign all user certificates. The private key (ca) must be kept secret; the public key (ca.pub) is registered with the Hoop gateway via --trusted-ca.
ssh-keygen -t ed25519 -N "" -C "hoop-ca" -f ca
Sign a user certificate Generate the user’s keypair, then sign the public key with the CA:
# Generate the user keypair
ssh-keygen -t ed25519 -N "" -C "alice@example" -f alice

# Sign with the CA — grants full terminal and port-forwarding access
ssh-keygen -s ca \
    -I "alice@example" \
    -n "alice,<hoop-user-id>" \
    -V "+52w" \
    -O clear \
    -O permit-pty \
    -O permit-port-forwarding \
    alice.pub
This produces alice-cert.pub alongside the existing alice and alice.pub files. The SSH client automatically uses the certificate when alice is passed as the identity file.
FlagDescription
-s caSign with the CA private key
-I "alice@example"Human-readable key ID embedded in the certificate (maps to key_id attribute)
-n "alice,<user-id>"Comma-separated principals embedded in the certificate (maps to principal attribute)
-V "+52w"Certificate validity — here, 52 weeks from now
-O clearClear all default permissions before adding explicit ones
-O permit-ptyGrant pseudo-TTY allocation for interactive sessions
-O permit-port-forwardingGrant TCP port-forwarding for database access
The -n principals list must contain the value the Hoop gateway will look up. For example, if the gateway is configured with --cert-attr principal and --user-attr user_id, one of the principals must be the user’s Hoop user_id.

​
Supported Resource Role Types

Clients connect to Hoop resources by specifying a Resource Role name as the SSH command argument. Each resource role type maps to a different access pattern:

custom

Interactive terminal sessions and ad-hoc command execution. The user connects to a predefined entrypoint (e.g. bash, python) and cannot escape the command defined in the resource role.

Postgres

Port-forwards a PostgreSQL connection to your local machine. Connect with any IDE or the psql CLI as if the database were running locally.

MySQL

Port-forwards a MySQL connection to your local machine. Connect with any IDE or the mysql CLI as if the database were running locally.
All supported types are fully governed by Hoop policies: sessions are recorded, guardrails are enforced, and data masking is applied where configured.

​
Client Usage

​

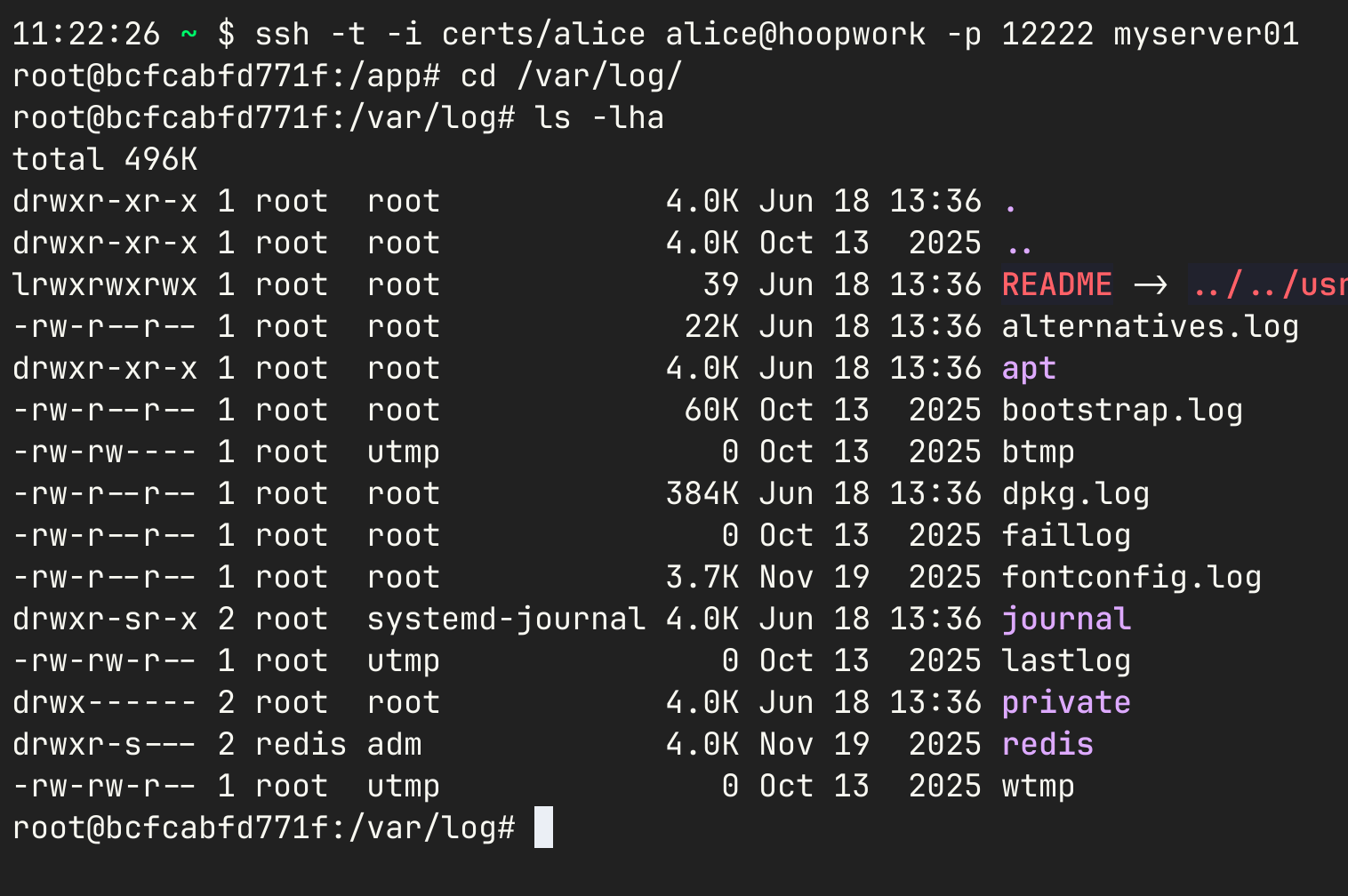

Terminal Access

When the resource role is configured with a shell or REPL entrypoint, the SSH client opens an interactive terminal session. Use the -t flag to request a pseudo-TTY allocation:
ssh -t -i ./certs/alice alice@127.0.0.1 -p 12222 mybash-resource
SSH Interactive Terminal Session

​

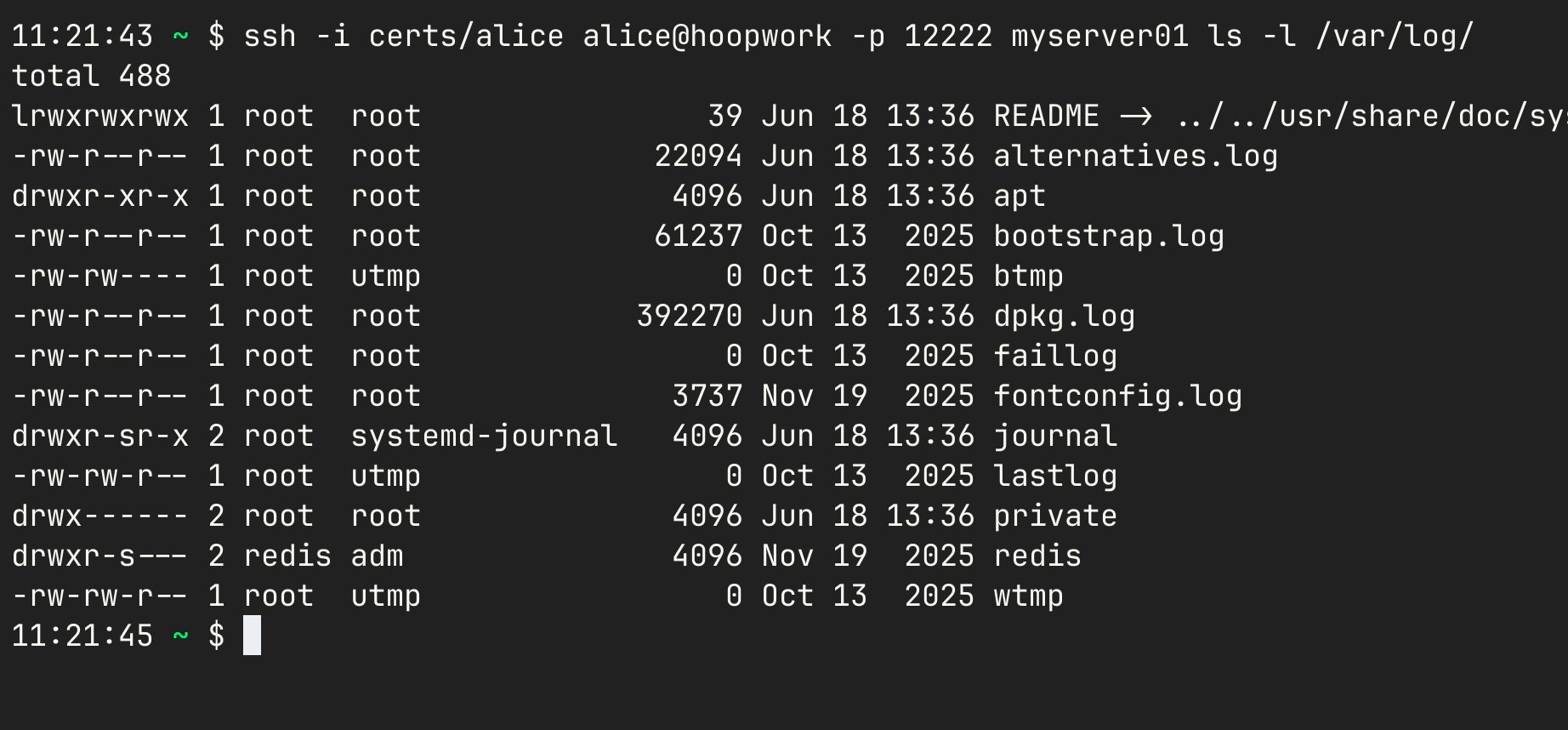

Ad-Hoc Command Execution

Over the same resource role you can run one-off commands without opening an interactive session. The command is passed as an argument after the resource role name:
ssh -i ./certs/alice alice@127.0.0.1 -p 12222 mybash-resource ls -l
You can also target a resource role that wraps any other tool or script:
ssh -i ./certs/alice alice@127.0.0.1 -p 12222 myscript
SSH Ad-Hoc Command Execution

​

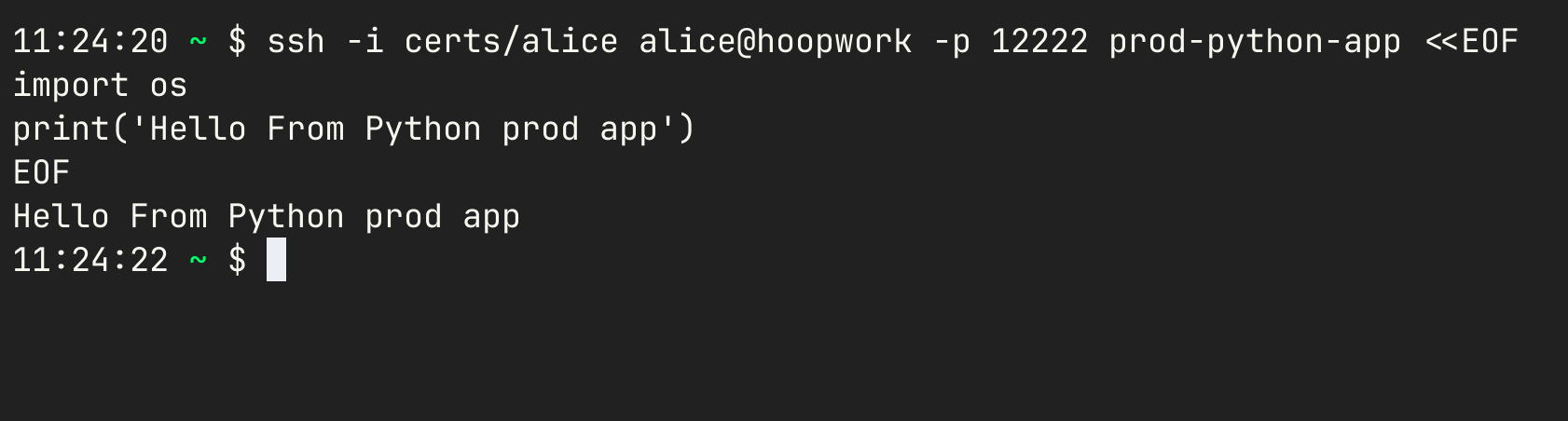

Piping Standard Input

For tools that consume complex or multi-line input, pipe stdin directly into the SSH command:
echo 'SELECT NOW()' | ssh -i ./certs/alice alice@127.0.0.1 -p 12222 postgres-demo
SSH Ad-Hoc Stdin Execution

​

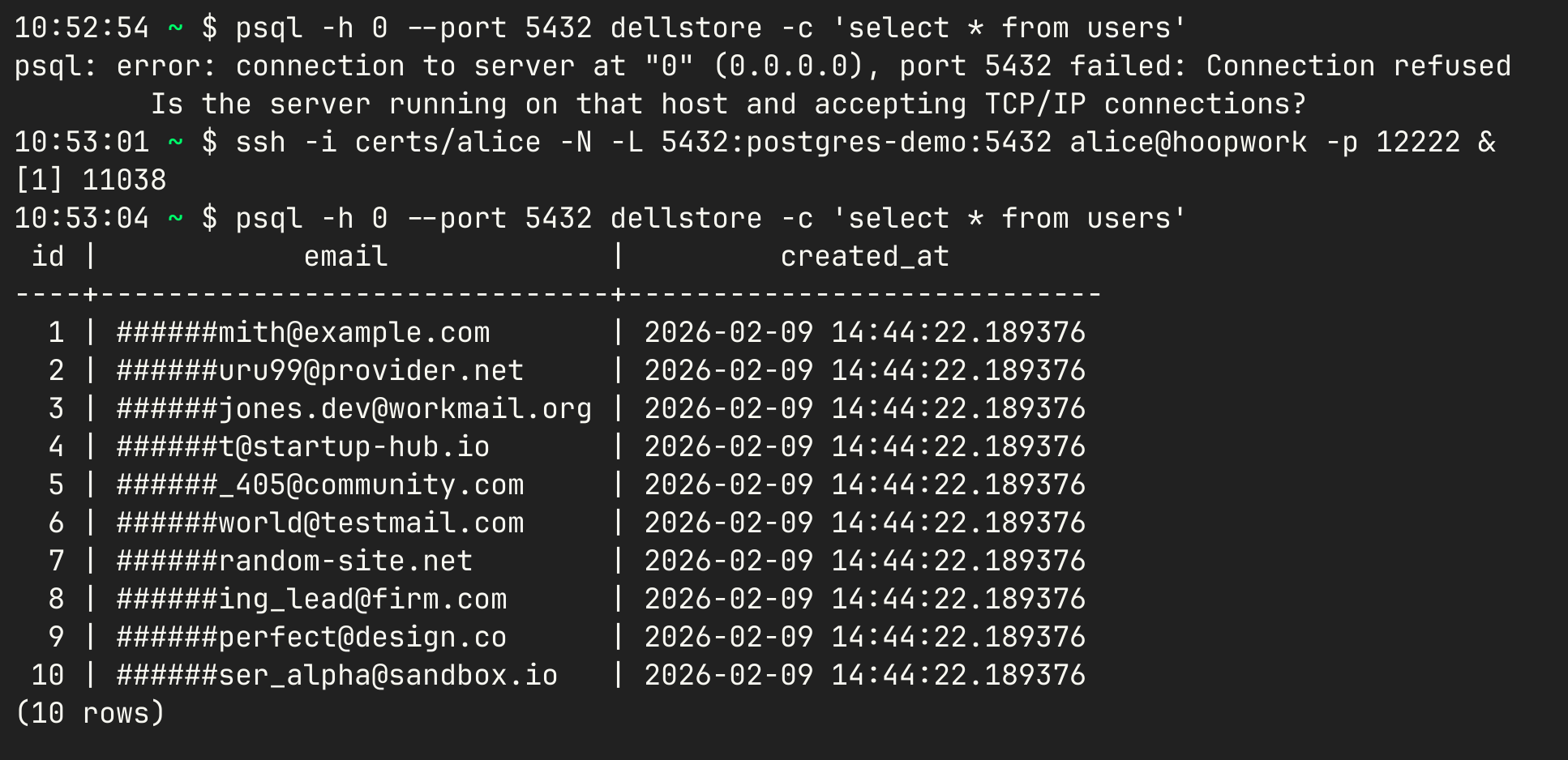

Database Port Forwarding

Port-forward a database resource role to your local machine and connect with any IDE or CLI tool:
# Forwards the Hoop resource role `postgres-demo` to localhost:5432
ssh -i certs/alice -N -L 5432:postgres-demo:5432 alice@hoopwork -p 12222
Once forwarded, connect normally:
psql -h localhost -p 5432 -U myuser mydb
SSH Port Forwarding to PostgreSQL with Data Masking

​
Running as a Jump Host

You can configure a standard sshd server to forward specific users through Hoop, extending your existing bastion with Hoop’s capabilities rather than replacing it.

​
sshd Configuration

Add the following directives to your sshd_config on the bastion server:
# Allow port-forwarding to reach Hoop resources
AllowTcpForwarding yes

# Restrict forwarding targets to the Hoop gateway only
PermitOpen <hoop-gateway-host>:<port>

# Trust the same CA used by the Hoop gateway
TrustedUserCAKeys /path/to/ca.pub

# Use the same host key as the Hoop gateway to avoid known_hosts conflicts
HostKey /path/to/host/key
The bastion and Hoop gateway must share the same CA key (TrustedUserCAKeys) and host key (HostKey) so that clients do not encounter host verification errors when jumping between them.

​
Client SSH Config

Configure the SSH client to proxy through the bastion into the Hoop gateway:
Host hoop-bastion
    HostName bastion.company.org
    Port 22
    User alice
    IdentityFile ./certs/alice
    IdentitiesOnly yes
    PreferredAuthentications publickey
    UserKnownHostsFile /dev/null
    StrictHostKeyChecking no

Host hoop-alice
    HostName hoopgateway.company.org
    Port 12222
    User alice
    IdentityFile ./certs/alice
    IdentitiesOnly yes
    PreferredAuthentications publickey
    UserKnownHostsFile /dev/null
    StrictHostKeyChecking no
    ProxyJump hoop-bastion
With this configuration, users can access Hoop resources through the bastion transparently:
# Open an interactive terminal via the bastion
ssh -t hoop-alice mybash-resource

# Port-forward a MySQL database via the bastion
ssh -N -L 3307:mysqldemo:3307 hoop-alice
