Hoop is a secure access gateway that sits between your users and your infrastructure. It proxies connections through a lightweight agent running inside your network — no inbound firewall rules required, no VPN needed, and nothing in your infrastructure exposed to the internet.

​
Components

​
Gateway

The gateway is the central hub of the system. It handles all user-facing traffic — authentication, authorization, session management, and policy enforcement — and coordinates with agents over a persistent gRPC connection. The gateway runs as a single binary and exposes:
  • Web UI — browser-based interface for managing connections, running queries, reviewing sessions, and approving access requests
  • REST API — the same API the web UI uses; available for programmatic access and automation
  • gRPC server — the internal transport layer used by agents and native clients to stream data
  • Protocol proxies — native protocol listeners (PostgreSQL, SSH, RDP, HTTP) that allow standard tools to connect without any Hoop-specific client
The gateway requires a PostgreSQL database for storing connections, sessions, users, and audit data.

​
Agent

The agent runs inside your network, close to the resources you want to expose. It establishes an outbound gRPC connection to the gateway — meaning your infrastructure never needs to accept inbound connections. Agents run in two modes:
  • Standard mode — a persistent long-lived process, managed as a system service. Best for databases, internal APIs, container platforms, and jump hosts.
  • Embedded mode — runs alongside an application process, sharing its runtime context. Best for ad-hoc tasks, REPL consoles, and single-resource connections.
A single agent can serve multiple connections. See the Agents page for deployment details.

​
Clients

Users connect to resources through:
  • Web UI — browser-based access with a built-in code editor and terminal
  • Native clients — standard tools like psql, mysql, kubectl, or ssh pointed at a local proxy port on the gateway
  • HTTP proxy — browser or curl access to internal HTTP/HTTPS services via a time-limited session token

​
Ports

PortProtocolPurpose
8009HTTP / WebSocketREST API, Web UI, and browser-based sessions
8010gRPCAgent and native client communication
15432PostgreSQL wireNative psql / PostgreSQL client access
12222SSHNative SSH client access
13389RDPRemote desktop access
18888HTTP / WebSocketHTTP Proxy client access
Agents only make outbound connections to port 8010. No inbound ports need to be opened on the agent side.

​
Session Flow

When a user connects to a resource, the following happens:
  1. Authentication — the user authenticates via your identity provider (OIDC, SAML, or local auth). The gateway verifies the token and loads the user’s identity and group membership.
  2. Authorization — the gateway checks whether the user has access to the requested connection, based on access control rules and the connection’s configured access mode
  3. Policy evaluation — before the session begins, the gateway runs the request through an ordered plugin chain:
    • Reviews — if JIT approval is required, the session is held until approved
    • Audit — the request is logged
    • Data masking — DLP rules are applied to inputs and outputs
    • RBAC — role-based rules are enforced
    • Webhooks / Runbook hooks — external systems are notified
  4. Agent dispatch — the gateway forwards the session to the agent responsible for that connection. If the agent is offline, the connection fails.
  5. Execution — the agent executes the operation against the target resource using native protocols (SQL, SSH, RDP, HTTP, etc.) and streams results back through the gateway.
  6. Response processing — the gateway applies output-side plugins (data masking, audit logging) before returning data to the client.

​
Network Architecture

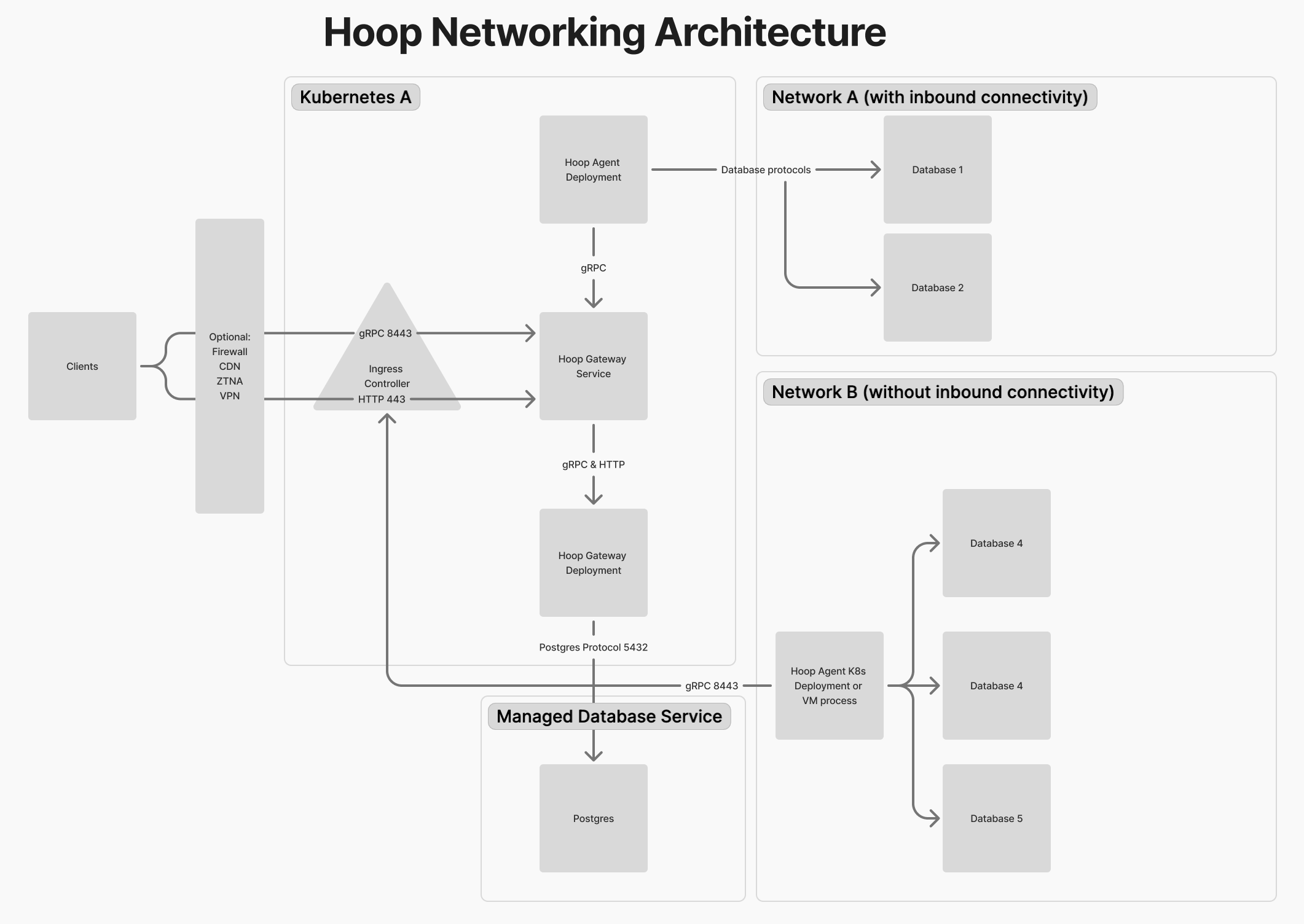

The diagram below illustrates deployment scenarios including Kubernetes and networks with or without inbound connectivity.
Hoop Networking Architecture

​
Deployment Topologies

​
Single Node (Docker Compose)

Suitable for evaluation and smaller deployments. All components — gateway, default agent, PostgreSQL, and optional DLP services — run as containers on a single host. See Docker Compose deployment.

​
Kubernetes

The recommended approach for production. The gateway runs as a pod (or multiple replicas), agents are deployed as separate pods close to your resources, and PostgreSQL is provided by an external managed service (e.g. RDS). Optional components — data masking (Microsoft Presidio) and protocol proxies — can be enabled independently. See Kubernetes deployment.

​
Authentication

The gateway integrates with your identity provider for user authentication. Supported methods:
  • OIDC / OAuth 2.0 — Okta, Azure AD, Google, Auth0, and any OIDC-compliant provider
  • SAML 2.0 — enterprise SSO
  • Local — built-in username/password, suitable for self-hosted setups without an external IDP
Agents authenticate to the gateway using a signed token (HOOP_KEY) generated at registration time. Service accounts can be created for programmatic API access. See Identity Providers for configuration details.
