Requirements

  • An account in OKTA
  • API_URL is the public DNS name of the hoop gateway instance
Contact the administrator of the hoop gateway instance to retrieve the API_URL address.

​
Identity Provider Configuration

1

Create an Application

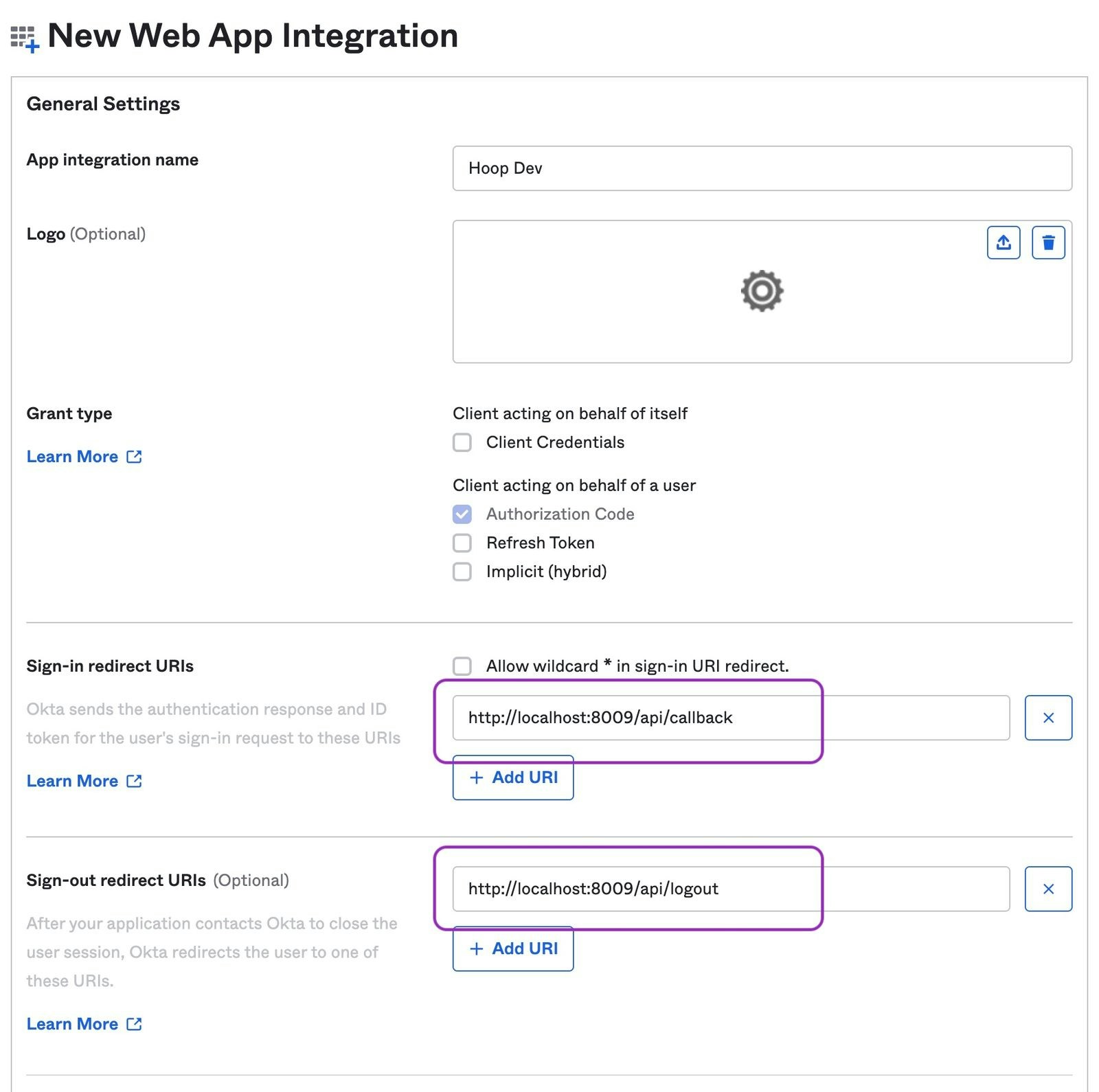

  • Go to Applications > Applications and click on the Create App Integration button
  • In Sign-in Method, select OIDC - OpenID Connect
  • In Application type, select Web Application
2

Configure the Redirect URIs

  • Signin redirect URIs: {API_URL}/api/callback
  • Signout redirect URIs: {API_URL}/api/logout
3

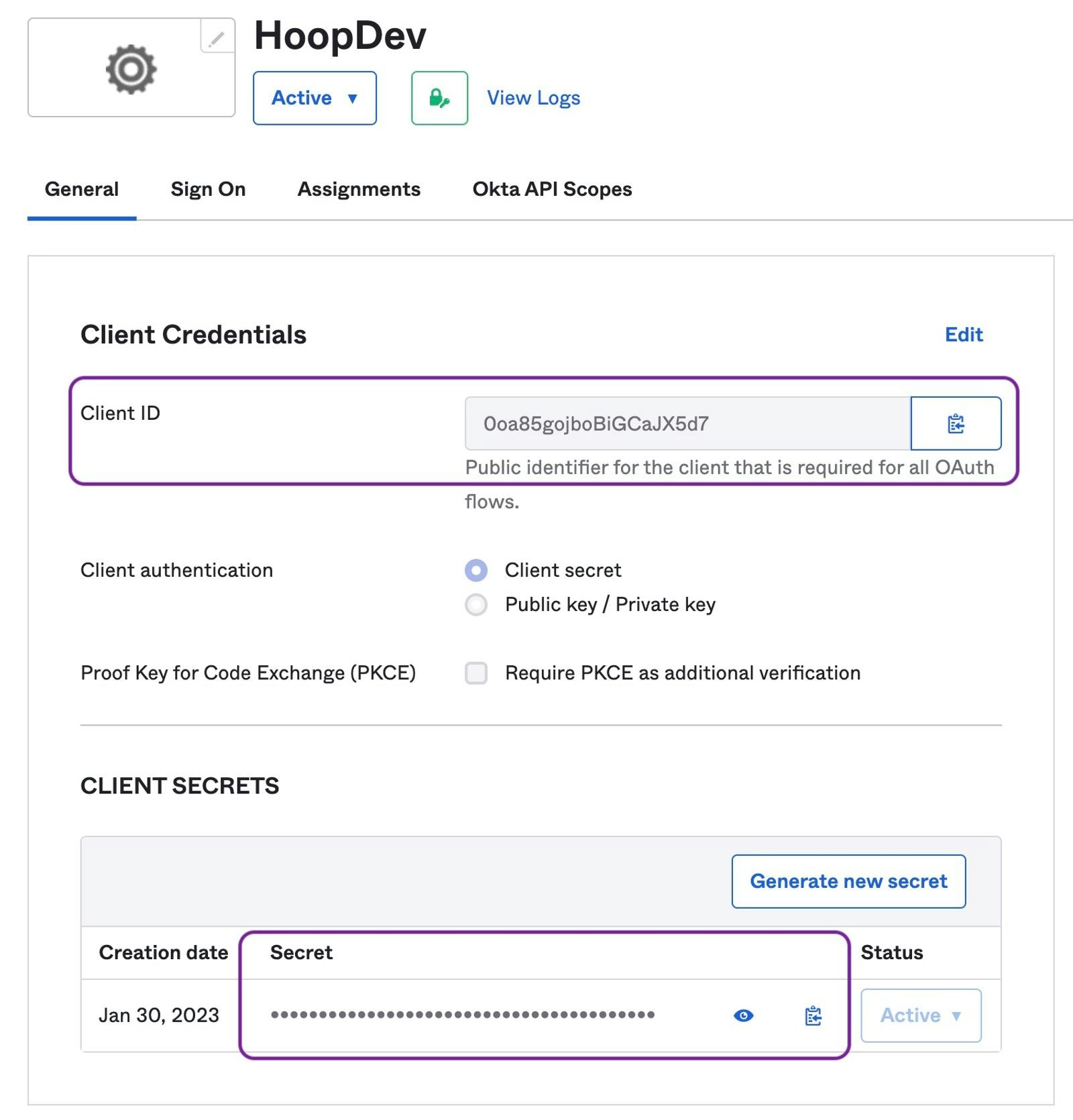

Collect the Credentials

  • In the Application Home copy the Client ID and Client Secret
4

Collect Issuer Information

  • The Issuer URI depends on the authorization server being used. Refer to this documentation.
If Okta does not allow external applications to validate access tokens, add the query string option _userinfo=1 when configuring the Gateway. It indicates to use the user info endpoint. The _userinfo value is removed when used to exchange information with the identity provider.

​
Configuring Groups

Explains how to configure groups claim to propagate when users sign in.
Refer to Okta’s Documentation for more information.
1

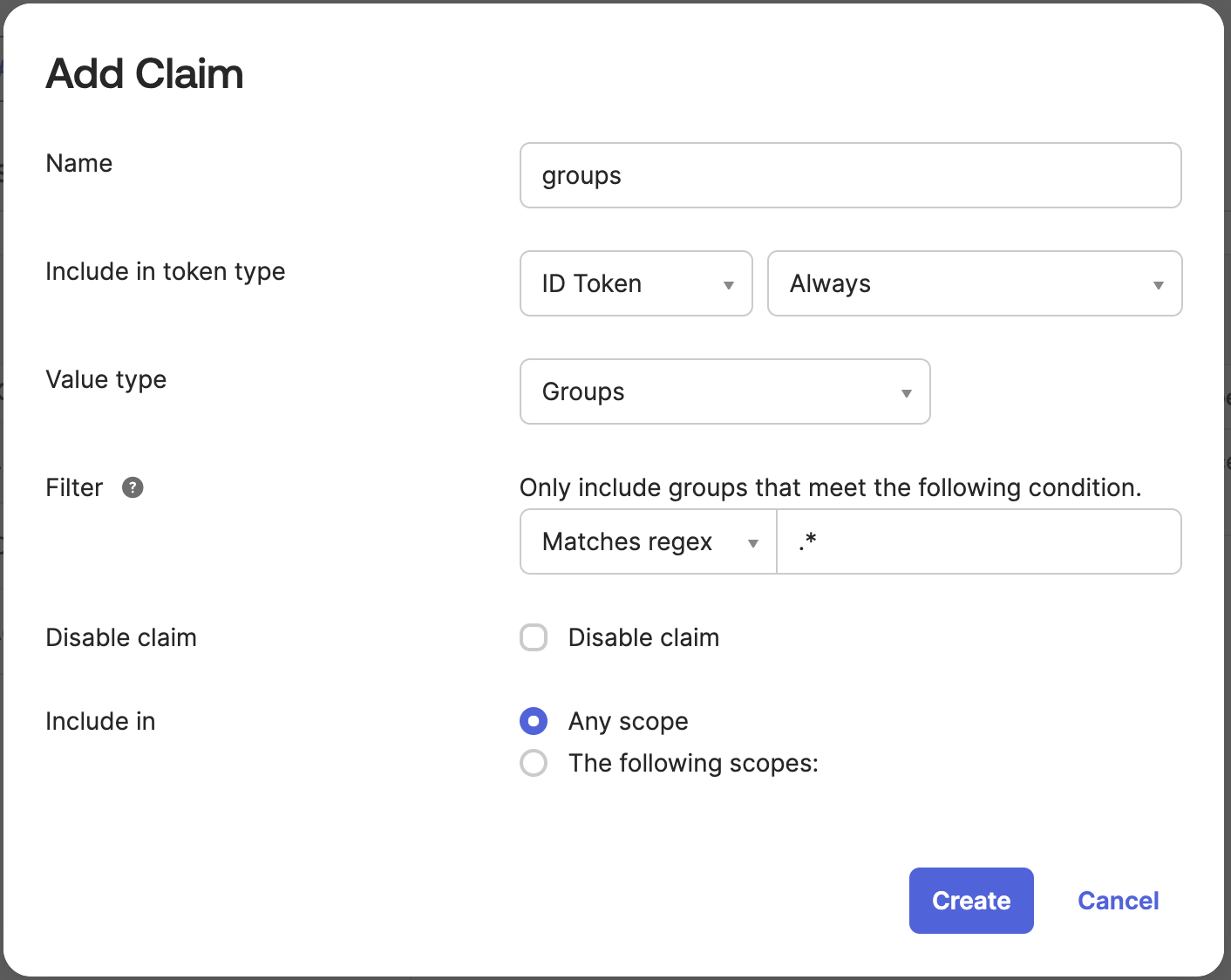

Add Groups Claims

  • Go to Security > API > {authorization server} > Claims
  • Click on Add Claims button
Add the groups claim for the ID Token to any scope (image below)
2

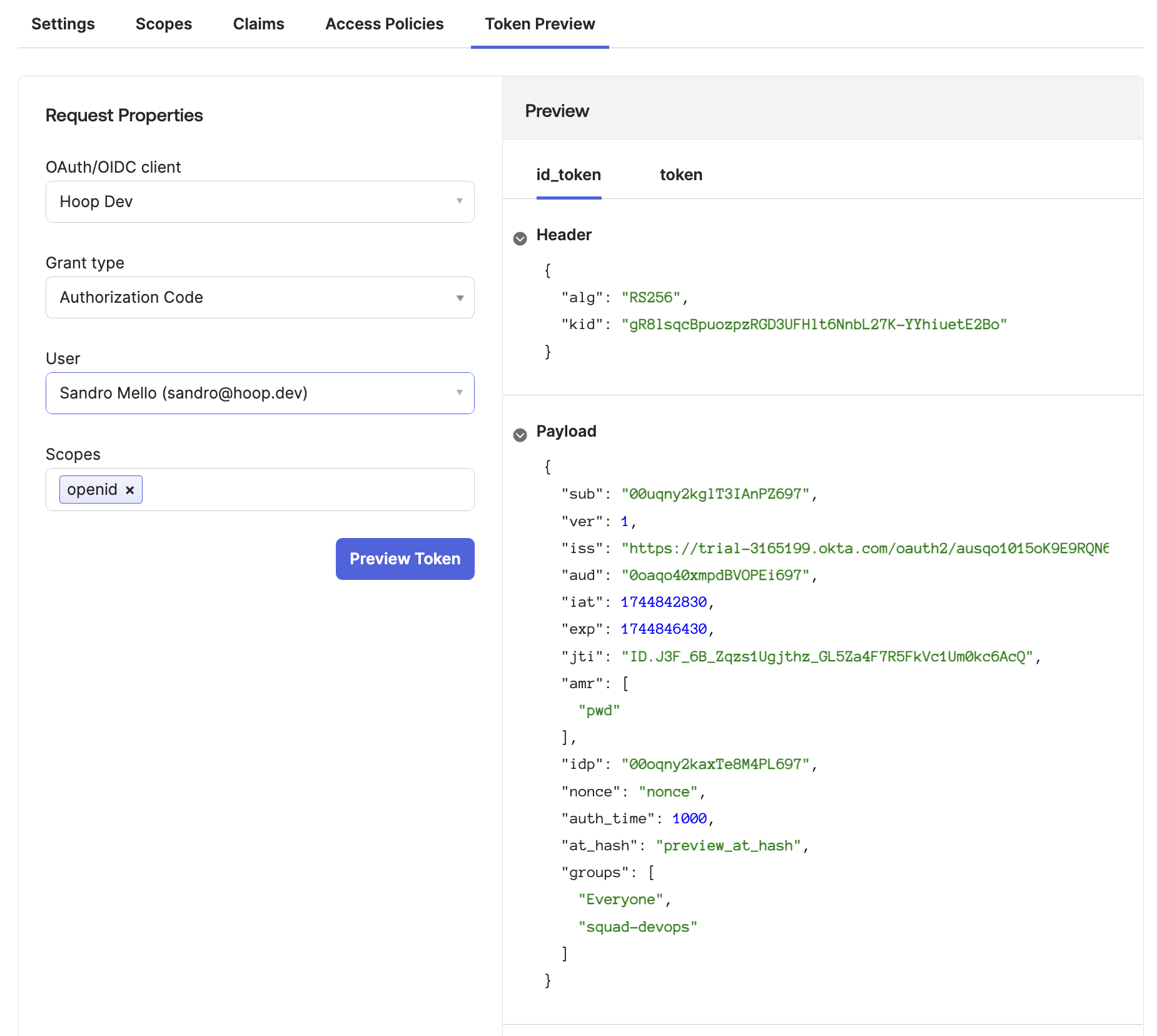

Token Preview Test

This step validate if the configuration is returning the groups claim properly
  • Go to Token Preview tab
  • Select the Hoop Application
  • Select the Grant Type as Authorization Code
  • Select a user associated with this application
  • Add the scope openid
The payload must appear with a claim named groups containing the groups associated with your application (image below)
Please note that the groups claim will not be present when a user has no group assignments. Hoop synchronizes group information only when this attribute is configured. To prevent potential issues, ensure each user is assigned to at least one default group.
3

Configure Hoop Gateway

The Hoop gateway requires proper configuration to correctly map claim names for synchronization. For detailed instructions, please consult the OAuth2/OIDC Authentication Documentation
